1405	Excellent	Depth Guide

Art.- No.	For drill length [mm]	Drilling depth [mm]	Foot measure outside [mm]	Foot measure inside [mm]	OAL [mm]		€
1405.210	max. 240	210	Ø 150	Ø 90	~330	Accessory	146.50
1405.320	max. 350	320	250 x 150	135 x 90	~490	Accessory	217.00

Fixture

Art.- No.	max. clamping width [mm]	Description		€
1402.000	0 - 90	Fixture	Accessory	75.90

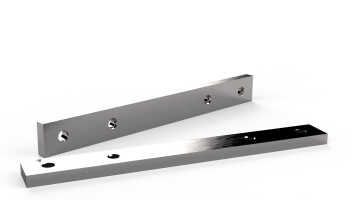

1402.901	200	Set of Rails for broadening	Accessory	44.85

Universal drill chuck adapter

Art.- No.	SØ [mm]	Clamping range [mm]	Description		€
1402.043	13	1,5-13	Drill chuck adapter for drill stands		67.10

With additional handle, 2 stageless adjustable depth stops. Version with square foot and with additional stabiliser at the bottom of the guide bars. Precise drilling in exact 90° setting angle. Fixture set 1402.000: mountable on all FAMAG drill rigs with square foot. For power drills collar diameter 43 mm. Tool holder and foot made of cast aluminium, guide bars made of stainless steel.

Technical changes or mistakes reserved! All prices are recommended retail prices additionally value added tax.
