Drills and Countersinks for Wood
Cylindrical boring bit

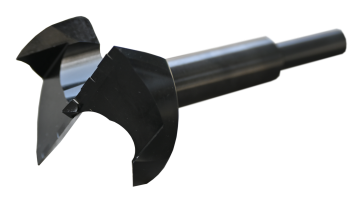

1610 Plug socket drill for timber construction
All prices plus inflation surcharge of 4.25% |
1610 |
 |
Plug socket drill for timber construction |
|---|
| Art.- No. | O-Ø
[mm] |
Stem Ø
[mm] |
SØ
[mm] |
OAL
[mm] |
Effective L.
[mm] |
€ | |
|---|---|---|---|---|---|---|---|
| 1610.068 | 68 | 20 | 13 | 160 | 110 | Accessory | 92.25 |

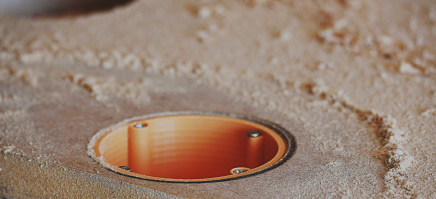

Plug socket drill bit for fast and clean drilling of installation sockets in timber construction. The drill is fitted with two offset fluted main cutting edges, a centre point and two spurs. Due to the special geometry of the spurs and the low cutting forces, thanks to the chip breaker flutes on the main cutting edges, the drill bit is perfectly suited for use in a powerful cordless drill. The plug drill is the ideal drilling tool for timber house construction at an extremely fair price. For higher demands, or if the drill needs to be placed at a certain angle, we recommend our Bormax® prima, long version, of series 1614.
| Technical changes or mistakes reserved! All prices are recommended retail prices additionally value added tax. |
|---|
