News from May 05, 2020

Router Bit Sets – brand new and razor sharp now finally in FAMAG quality

Today we present you our two new router bit sets in professional quality:

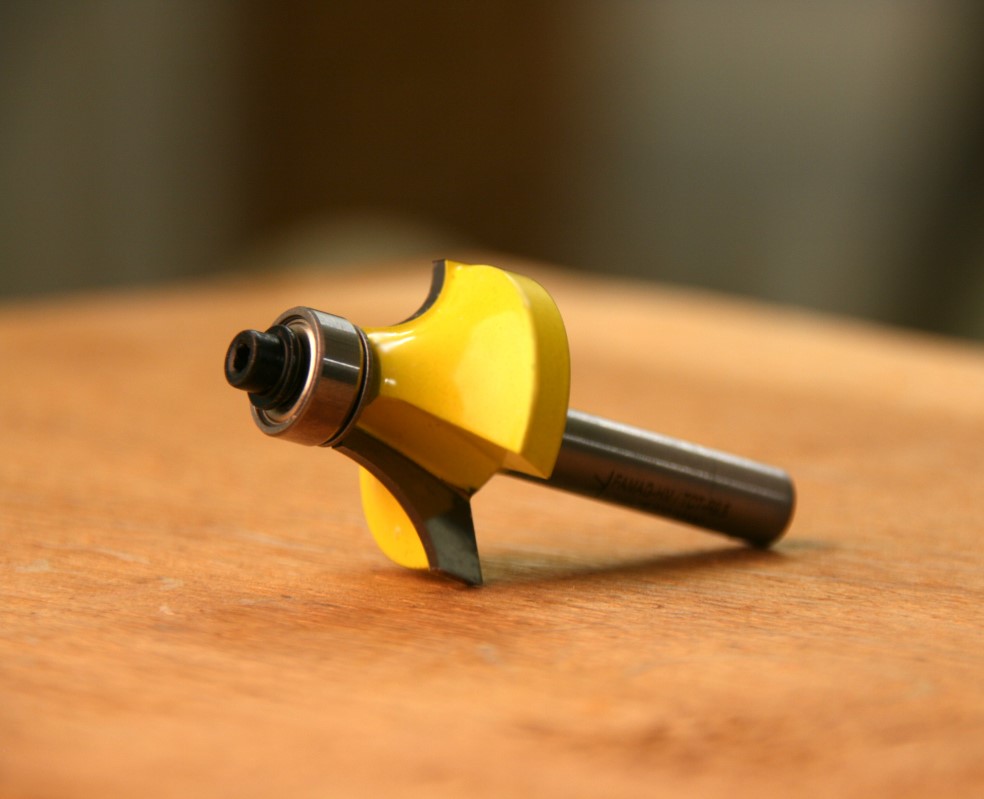

The new FAMAG router bits are fitted with high quality carbide plates, which are soldered very gently on the steel body. Low soldering temperatures reduce the hardening distortion considerably and affect the carbide much less than conventional methods. In more than 150 years in the production of FAMAG TCT drill bits we gained this know how!

The shanks are machine wet cylindrical ground to the exact diameter of 8.0 mm and thus have a perfect concentricity.

Only high-quality bearings are used. As a result these router bits run particularly smoothly and have an exceptional service life. All cutters are labelled and show how deep they have to be clamped into the collet chuck of your router.

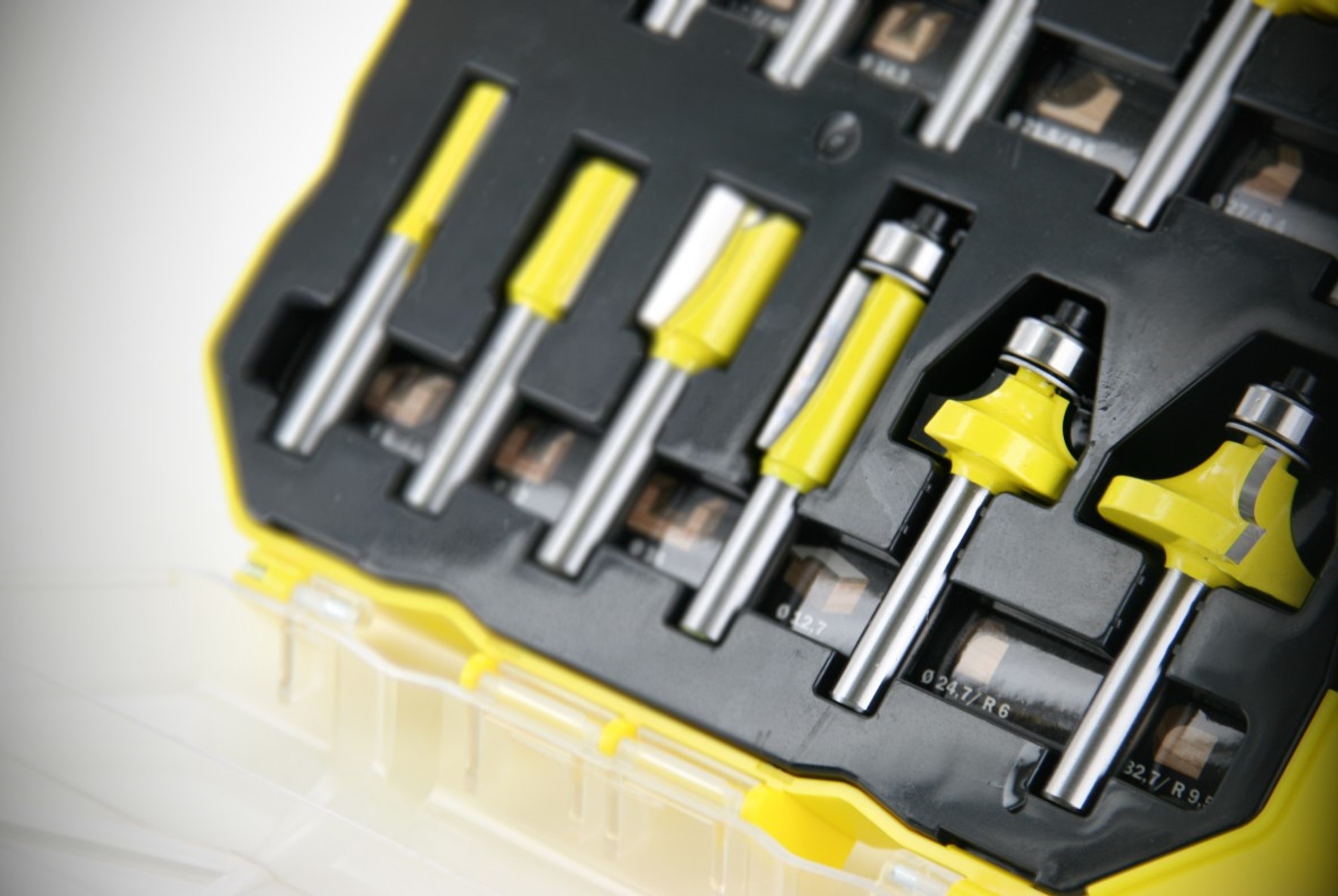

Every router bit finds its safe place in the top class plastic box. Due to the detailed labelling you can see at a glance the profile of each cutter and its dimensions. The boxes are fitted with a transparent lid that can easily be opened and a permanently secure locking system for closing.

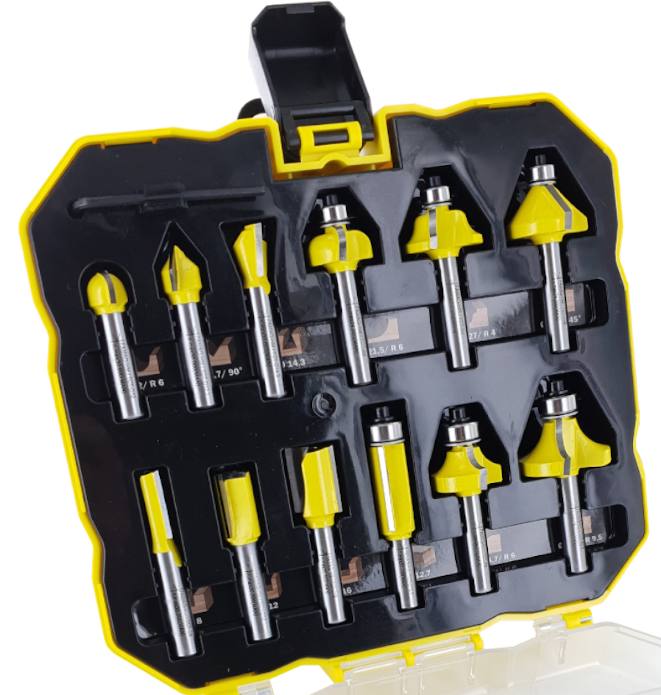

Certainly the 12-piece set with its straight bits, panelling bits and others is the bestseller. In addition the set contains the matching pin wrench for the bearings.

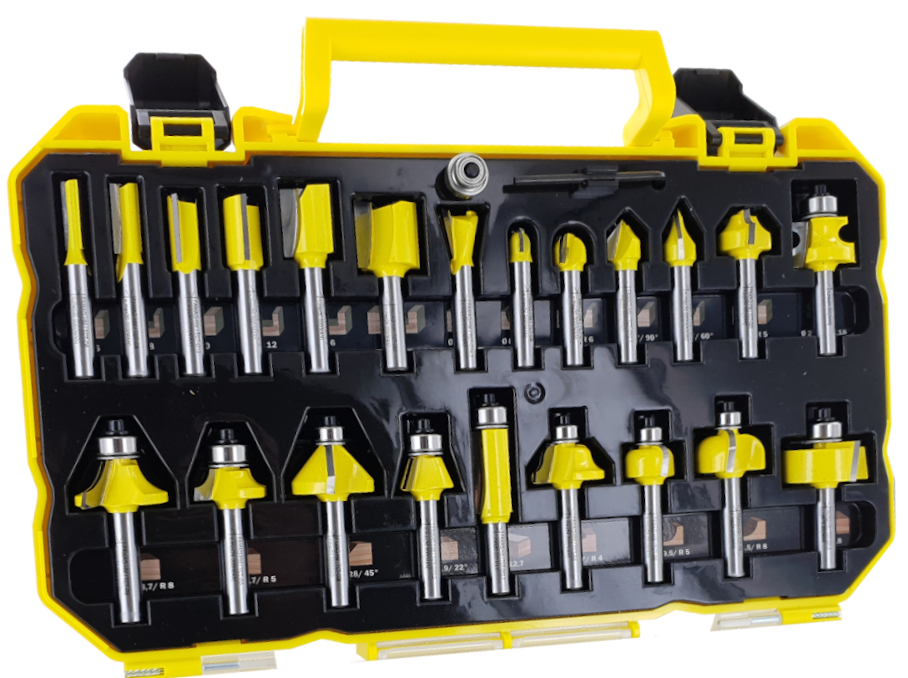

The 22-piece set contains all router bits of the 12-piece set as well as the most important versions for the professionals. In this set you will also find the matching pin wrench and additionally two spare bearings.

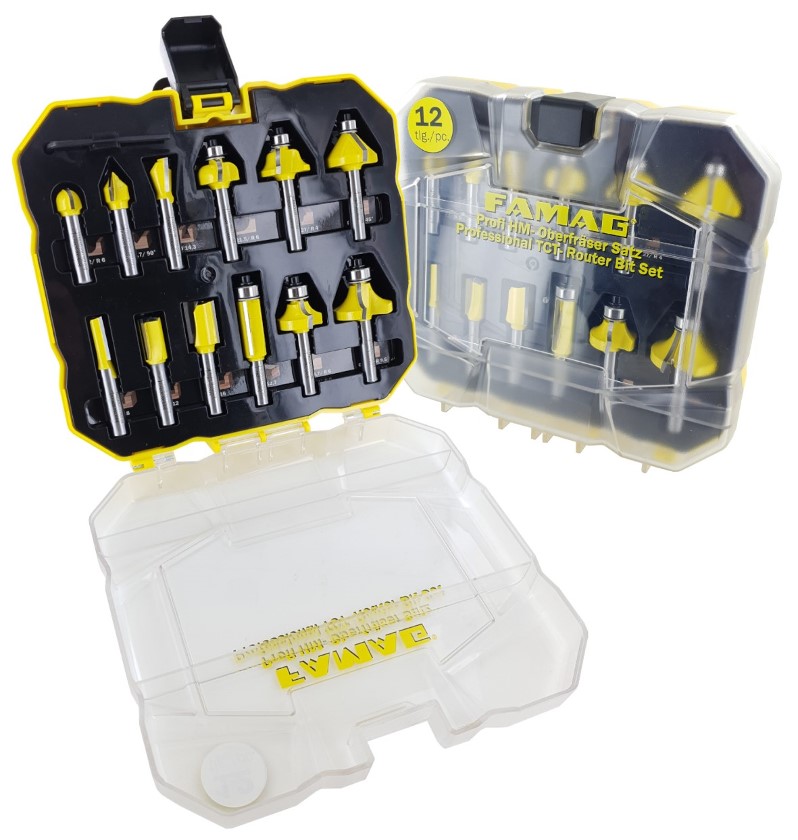

3382.812 TCT Router Bit Set 'Profi line' 12-pcs. in plastic box 1 pc. Flush Trim Bit, with ball bearing (Ø12,7 mm, NL 25,4 mm) 1 pc. Dovetail Bit (Ø14,3 mm, NL 12,7 mm) 1 pc. V-Groove Bit (Ø12,7 mm, 90°) 1 pc. Cove Bit (Ø12 mm, R 6 mm) 1 pc. Cove Bit with ball bearing (Ø21,5 mm, R 6 mm) 3 pcs. Flush Trim Bit (Ø8, 12, 16 mm, NL 20 mm) 2 pcs. Rounding Over Bit (Ø24,7 mm, R 6 + Ø32,7 mm, R 9,5 mm) 1 pc. Chamfer Bit (Ø28,6 mm, 45°) 1 pc. Panelling Bit (Ø27 mm, R 4 mm)

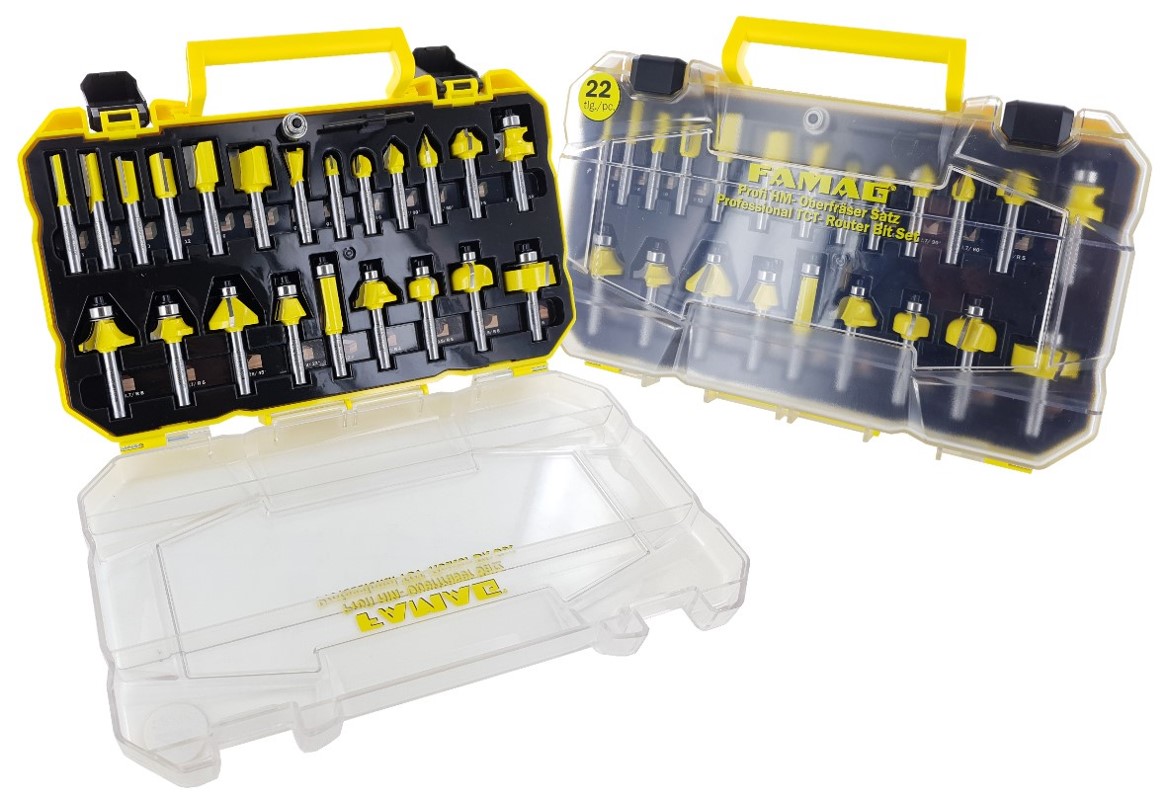

3382.822 TCT Router Bit Set 'Profi line' 22-pcs. in plastic box 1 pc. Flush Trim Bit, with ball bearing (Ø12,7 mm, NL 25,4 mm) 1 pc. Dovetail Bit (Ø14,3 mm, NL 12,7 mm) 1 pc. Engraving Bit (Ø12,7 mm, 60°) 1 pc. V-Groove Bit (Ø12,7 mm, 90°) 2 pcs. Cove Bit (Ø8 mm, R 4 + Ø12 mm, R 6 mm) 2 pcs. Cove Bit with ball bearing (Ø19,5 mm, R 5 mm + Ø25,5 mm, R 8 mm) 6 pcs. Flush Trim Bit (Ø6, 8, 10, 12, 16, 20 mm, NL 20 mm) 2 pcs. Rounding Over Bit (Ø22,7 mm, R 5 + Ø28,7 mm, R 8 mm) 1 pc. Bevel Trim Bit (Ø19,9 mm, 22°) 1 pc. Chamfer Bit  (Ø28 mm, 45°) 1 pc. Rabbeting Bit (Ø31,8 mm, NL 12,7 mm) 1 pc. Bull Nose Bit (Ø22,2 mm, R 3,18 mm) 1 pc. Panelling Bit (Ø21 mm, R 5 mm) 1 pc. Panelling Bit with ball bearing  (Ø27 mm, R 4) 2 pcs. replacement ball-bearings (Ø 9,5 mm + Ø 12,7 mm)

Take a look at the brochure
